Product Details:
|
Size: | 1200*1000*1150mm | Capacity: | 1000L |
---|---|---|---|
Feature: | Strong | Material: | HDPE+METAL |
Shape: | Square | Type: | Tank |
Usage: | Water | Product Name: | IBC Tank |
Color: | White | Application: | Chemical Drum |
Grade: | Food Grade Container | Function: | Package Industrial Liquid |
Highlight: | HDPE metal chemical square tank,chemical tank 1000 ltr 56kg,HDPE metal chemical tank 1000 ltr |
4600kg 1200*1000*1150mm Packaging Industrial Liquids Chemical Tanks
Specification

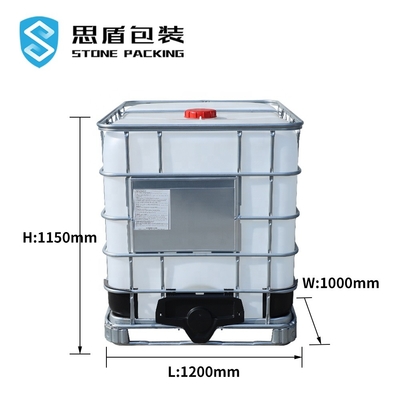

Overall dimension: | L1200*W1000*H1150mm(±5mm) |
Max Allowable Weight: | 2013 kg |
Tare Weight: | 56±2kg |
Allowable Stacking Weight: | 4056kg |
Material of inner Receptacle | HDPE |
Material of outer Casing: | Galvanized steel DCD51D |
Material of pallet: | Galvanized steel DC53D |
Material of seal: | EPDM, FKM, Nitrile, PE |
Valve and Material: | Ball Valve DN50 or Butterfly Valve DN 50 |
Stacking Test Weight: | 4056kg |
Dropping Test Height: | 1.9m |
Hydraulic Test pressure: | 100kpa |
Vibration Test: Amplitude: | 25±5%mm, Time Duration:1 hour |
Details
About stacking
Fill the container with water at a nominal capacity of 98%, the loading value on the container shall be 4600kg. The maximum allowable gross weight, and maintain for 24 hours at room temperature, with no fall, no deformation, and no leakage.
About load bearing
IBC barrels are equipped with iron frames to increase the load-bearing capacity. IBC tanks cubic, its clearance is very small after stacking which can save transportation
and storage space. 20%6 unusable space remained after stacking of round barrels.
About capacity
IBC filling port 150mm to realize quick and high flow rate filling, and 1000L can be filled or drained for one time.
200L round barrel's filling port is normally less than 70mm, the flow rate is just 1/5 of the IBC barrel.1000L
the volume will be respectively filled or drained 5 times.
