Product Details:
|
| Material: | HDPE+METAL | Size: | 1200*1000*1150mm |
|---|---|---|---|
| Capacity: | 1000L | Color: | White |
| Shape: | Square | Feature: | Strong |
| Application: | Chemical Drum | Product Name: | IBC Chemical Tanks |
| High Light: | white IBC Chemical Tanks,IBC 300 gallon chemical tote,HDPE 300 gallon chemical tote |
||

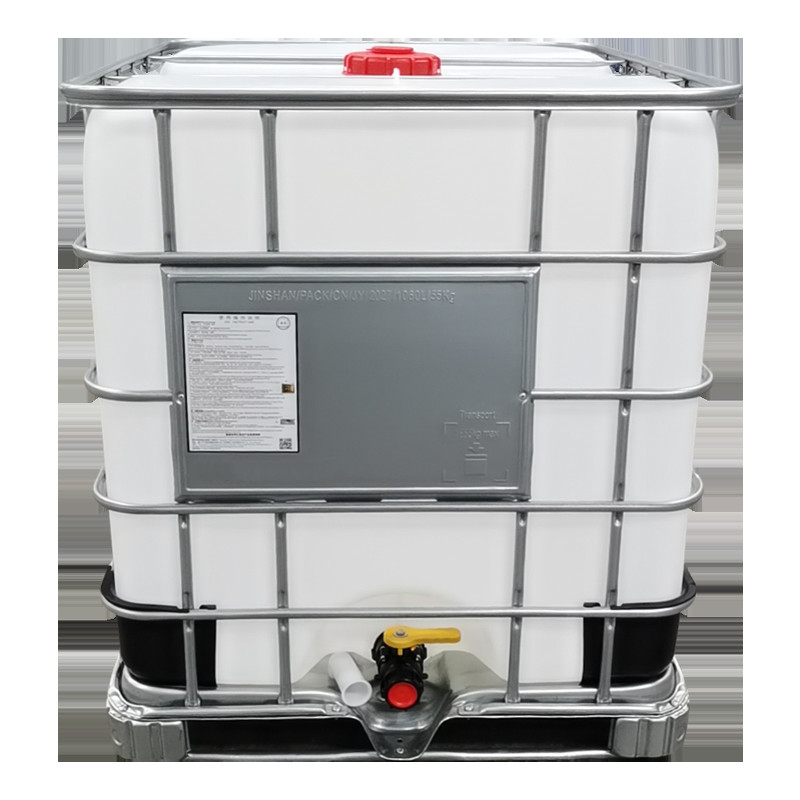

Strong IBC Chemical Tanks Packaging Industrial Liquids HDPE+METAL
Specification
| Overall dimension: | L1200*W1000*H1150mm(±5mm) |
| Max Allowable Weight: | 2013 kg |
| Tare Weight: | 56±2kg |
| Allowable Stacking Weight: | 4056kg |
| Material of inner Receptacle | HDPE |
| Material of pallet: | Galvanized steel DC53D |
| Material of seal: | EPDM, FKM, Nitrile, PE |
| Valve and Material: | Ball Valve DN50 or Butterfly Valve DN 50 |
| Stacking Test Weight: | 4056kg |
| Dropping Test Height: | 1.9m |
| Hydraulic Test pressure: | 100kpa |
| Vibration Test: Amplitude: | 25±5%mm, Time Duration:1 hour |

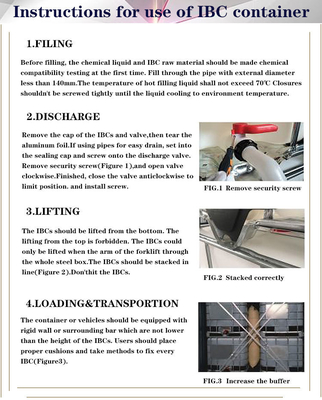

Instructions for use of IBC container
1. FILING
Before filling, the chemical liquid and IBC raw material should be made for chemical compatibility testing for the first time. Fill through the pipe with an external diameter less than 140mm. The temperature of hot filling liquid shall not exceed 70℃ Closuresshouldn't be screwed tightly until the liquid cooling to the environment's temperature.
2. DISCHARGE
Remove the cap of the IBCs and valve, then tear the aluminum foil. If using pipes for easy drain, set into the sealing cap and screw onto the discharge valve. Remove security screw, and open valve clockwise. Finished, close the valve anticlockwise limit position. and install the screw.
3. LIFTING
The IBCs should be lifted from the bottom. The listing from the top is forbidden. The IBCs could only be lifted when the arm of the forklift through the whole steel box. The IBCs should be stacked in line. Don't do the IBCs.
4.LOADING&TRANSPORTIONThe container or vehicles should be equipped with rigid walls or surrounding bars that are not lower than the height of the IBCs. Users should place proper cushions and take methods to fix every IBC.
| Quantity(Pieces) | 1 - 2000 | >2000 |
| Est. Time(days) | 3 | To be negotiated |
Our company:
Foshan Sidun Packaging Products Co., Ltd. was founded in 2008, located in Foshan, Guangdong, China. Sidun Packaging is a leading high-tech enterprise specialized in manufacturing various plastic products, such as plastic bottles, plastic buckets, plastic cans, PP bottles, HDPE bottles, PTFE bottles, fluorinated bottles, IBC tanks, IBC fitting, storage containers, and so on
Our products are widely used in the food industry, chemical industry, resin industry, and daily chemical industry. We can provide quality products, enthusiastic services, and OEM/ODM. We also obtain unanimous approval from the national and international markets. We sincerely hope to establish long-term business relationships with you and welcome your visit.
